REACH STACKER

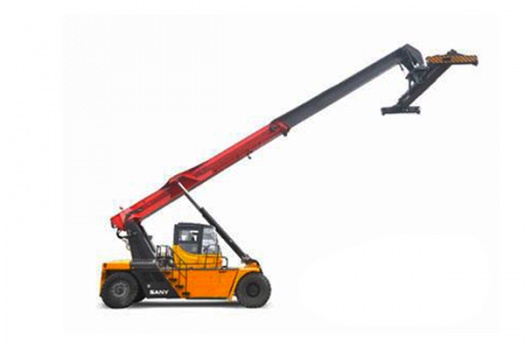

SRSC1009-6E Reachstacker

Total Weight: 39t;Wheelbase: 5000mm;Rated Load: 10t

Tel: +86 13382381018

Email: guxubo666@163.com

Advanced Fire Protection System
Equipped with a high-pressure pipeline spray automatic fire suppression system, delivering integrated fire alarm, flame retardation, and extinguishing functions with stable and reliable performance.

World-Class Engine Selection
Powered by internationally renowned engines (e.g., VOLVO, CUMMINS), ensuring dependable quality and robust power output.

Optimized Power Performance
Intelligent power matching and control technologies significantly enhance dynamic performance and operational efficiency.

Enhanced Durability and Comfort
Incorporates flexible damping technology to effectively reduce impact loads, improving both operator comfort and structural longevity.

Customized Tire Solutions
Optional solid tire flexible damping system available for enhanced safety, reliability, and reduced tire maintenance costs.

Intelligent Safety Systems
Utilizes laser scanning and image recognition technologies to accurately detect obstacles and personnel in the operating path, enabling automatic braking for proactive accident prevention.


  • Engine Model:CUMMINS QSB 6.7
  • Rated Power/Speed:164/2300kW/rpm
  • Max. Torque/Speed:949/1400Nm/rpm
  • Emission Standard:Stage III
  • Transmission Model:CLARK 13.7HR32334
  • Drive Axle Model:Kessler D81 PL488
  • Spread Model:SDJE100
  • Side-shift Distance:±800mm
  • Rotation Angle:+105/-195 deg
  • Self Weight:4.7t
  • Suitable for:ISO 20'/40'/45' Containers
  • Max. Hoisting Height:16200mm
  • Boom Tilt Angle:0~64.5 deg
  • Tires:14.00-24 28PR
  • Max. Hoisting Speed (No-load/Full-load):450/400mm/s
  • Max. Lowering Speed:400/400mm/s
  • Max. Travel Speed (No-load/Full-load):28/25km/h
  • Gradeability (No-load/Full-load):33/27%
  • Cab Noise:≤72 dB
  • Hydraulic System Working Pressure:220bar
  • Stacking Layers:6 (8'6")
  • Overall Length L:11000mm
  • Overall Height H:4000mm
  • Min. Ground Clearance H1:250mm
  • Overall Width W:6053-12185mm
  • Front Wheel Track T1:3280mm
  • Rear Wheel Track T2:2450mm
  • Min. Turning Radius R:6800mm
  • 20' Container Aisle Width A1:10000mm
  • 40' Container Aisle Width A2:13600mm
