REACH STACKER

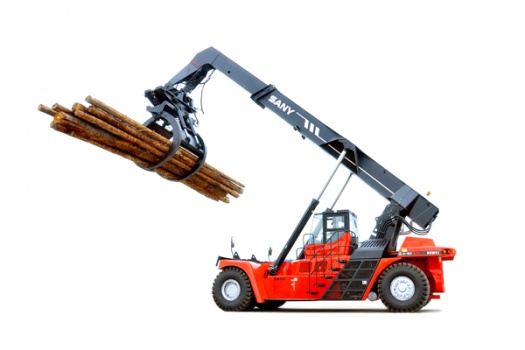

SRSW31H1 Reachstacker

Total Weight: 74.5tWheelbase: 6000mmRated Load: 31t

Tel: +86 13382381018

Email: guxubo666@163.com

Advanced Fire Protection
Equipped with a high-pressure pipeline spray automatic fire suppression system, providing integrated fire alarm, flame retardation, and extinguishing capabilities with stable and reliable performance.

Premium Engine Selection
Powered by globally recognized engines (e.g., VOLVO, CUMMINS), ensuring robust power output and proven reliability.

Optimized Power Management
Intelligent power matching and control technologies significantly enhance dynamic performance and operational efficiency.

Enhanced Durability and Comfort
Incorporates flexible damping technology to effectively reduce impact loads, improving both operator comfort and structural longevity.

Customized Tire Solutions
Optional solid tire flexible damping system available for enhanced safety, reliability, and reduced tire maintenance costs.

Intelligent Safety Systems
Utilizes laser scanning and image recognition technologies to accurately detect obstacles and personnel in the operating path, enabling automatic braking for proactive accident prevention.

  • Engine Model:VOLVO TAD1151
  • Rated Power/Speed:265/2100kW/rpm
  • Max. Torque/Speed:1780/1260Nm/rpm
  • Emission Standard:Stage III
  • Transmission Model:DANA 15.5HR36000
  • Drive Axle Model:KESSLER D102 PL341
  • Spread Model:SWG310
  • Side-shift Distance:±500mm
  • Rotation Angle:+20/-20 deg
  • Self Weight:8.1t
  • Max. Hoisting Height:9500mm
  • Boom Tilt Angle:0~55 deg
  • Max. Hoisting Speed (No-load/Full-load):420/250mm/s
  • Max. Lowering Speed:360/300mm/s
  • Max. Travel Speed (No-load/Full-load):25/21km/h
  • Gradeability (No-load/Full-load):39/32 %
  • Cab Noise:≤72 dB
  • Hydraulic System Working Pressure:260bar
  • Overall Length L:12600mm
  • Overall Height H:6660mm
  • Front Wheel Track T1:3033mm
  • Rear Wheel Track T2:2790mm
  • Min. Turning Radius R:8000mm
  • 20' Container Aisle Width A1:11300mm
  • 40' Container Aisle Width A2:13600mm
