REACH STACKER

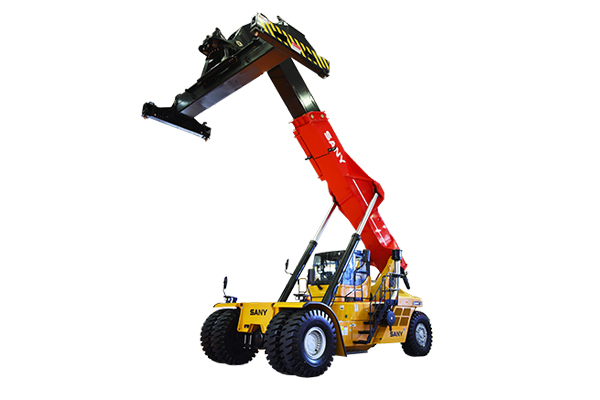

SRSC45T Reachstacker

Gross Weight: 65t;Wheelbase: 6000mm;Rated Load: 45t

Tel: +86 13382381018

Email: guxubo666@163.com

Core Technologies

  1. Intelligent Weighing: One-touch smart weighing measures total weight, eccentric load, and uneven distribution with 5% accuracy, and prints results.

  2. Intelligent Centering: One-touch automatic centering control for open-top containers, achieving precision within ±5cm.

  3. Container Latching Protection: Ensures operational safety and achieves "zero" incidents in container latching.

  4. Mixed Light & Heavy Handling: Activates the empty/heavy container mode to instantly eliminate issues when handling mixed container types.

  5. Hydraulic Emergency Functions: Emergency hydraulic systems for telescoping, luffing, unlocking, and steering to resolve critical situations.

Key Enhancements

  1. Site Adaptability: The machine has a lightweight design and strong adaptability to various working sites.

  2. Dust Control: Optimized air intake and exhaust systems effectively prevent dust dispersion.

  3. Longitudinal & Transverse Operation: The specially extended boom head enables smooth operation in both longitudinal and transverse directions.

  4. Dedicated Spreader: Custom 20-foot spreader designed for lightweight operation and energy efficiency.


  • Engine Model:VOLVO TAD1151
  • Rated Power:265kW/2100rpm
  • Max. Torque/Speed:1780Nm/1260rpm
  • Emission Standard:Stage III
  • Transmission Model:DANA 15.5HR36000
  • Drive Axle Model:KESSLER D102 PL341
  • Spread Model:SDJ450T
  • Spread Rotation Angle:+105°/-195°
  • Spread Compatibility:20
  • Tire Size:18.00-25 40PR
  • Overall Length:10970mm
  • Gross Weight:65t
  • Overall Height:4770mm
  • Max. Lifting Capacity:45t
  • Overall Width:6053-12185mm
  • Stacking Layers:3(9
  • Wheelbase:6000mm
  • Max. Hoisting Speed:250mm/s, Unladen: 420mm/s
  • Min. Ground Clearance:350mm
  • Max. Lowering Speed:Laden: 300mm/s, Unladen: 360mm/s
  • Front Wheel Track:3033mm
  • Max. Travel Speed:Laden: 21km/h, Unladen: 25km/h
  • Rear Wheel Track:2790mm
  • Gradeability:Laden: 32%, Unladen: 39%
  • Front Wheel Turning Radius:1200mm
  • Max. Hoisting Height:9300mm
  • Rear Wheel Turning Radius:8000mm
  • Boom Tilt Angle:0~50°
