REACH STACKER

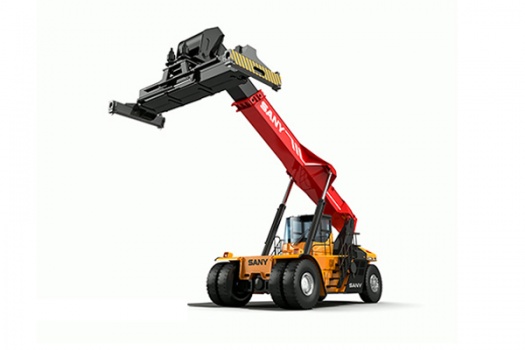

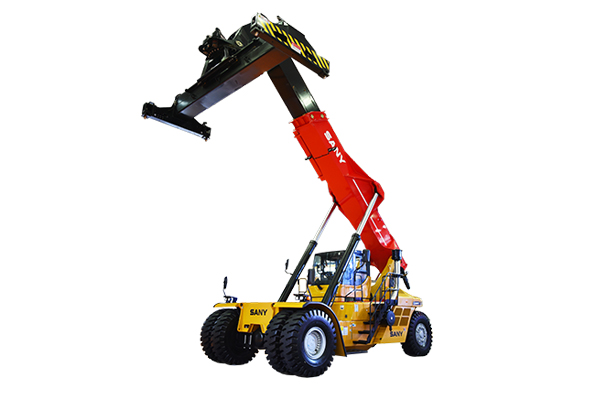

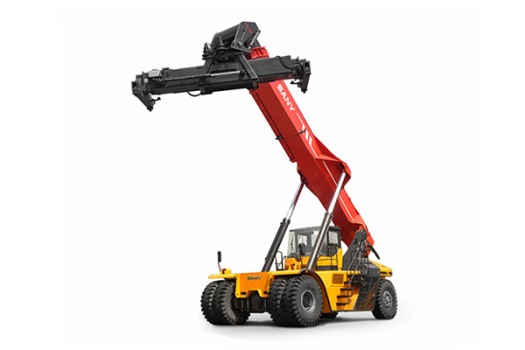

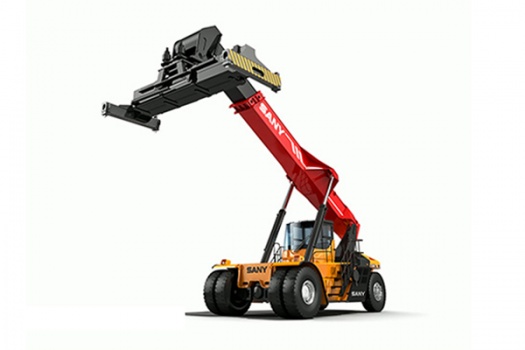

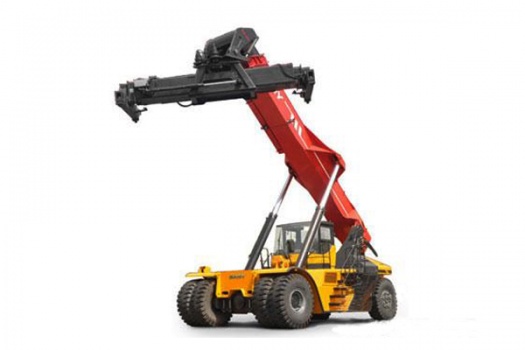

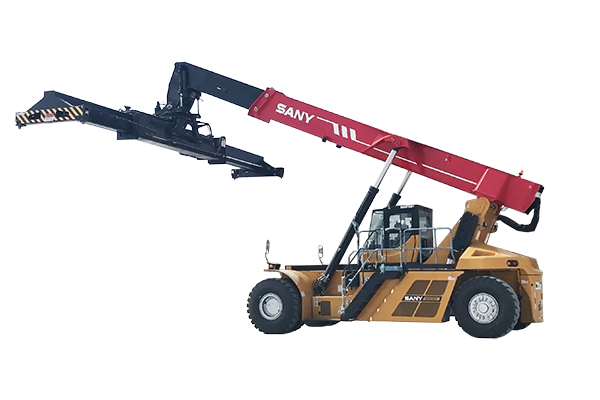

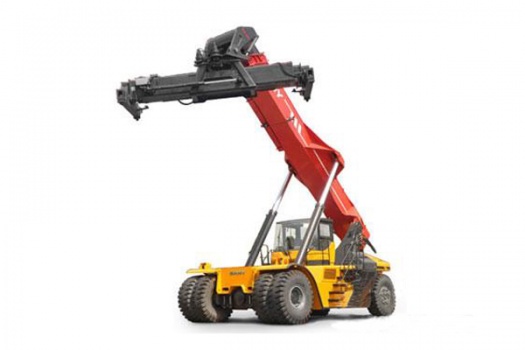

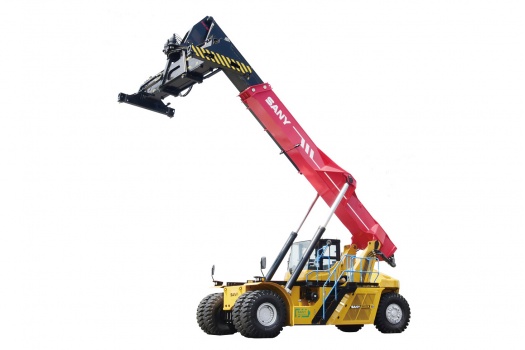

SRSC45V Reachstacker

Gross Weight: 71t;Wheelbase: 6000mm;Rated Load: 45t

Tel: +86 13382381018

Email: guxubo666@163.com

  1. Optional imported 5-speed automatic transmission: proportional shifting ensures smoother gear changes and enhanced comfort; optimized power performance when paired with the engine.

  2. Equipped with Sany's new-generation hydraulic energy-saving system and integrated engine load precision control, achieving 15% fuel savings in test conditions under eco-mode.

  3. Fitted with a proportional hydraulic system for spreaders, improving container handling through fine-tuned micro-motion control.

  4. Features elevated air intake with pre-filter, extending air filter lifespan and ensuring enhanced engine safety.

  5. Includes annular fire extinguishers, reverse radar, and rearview camera systems for improved operational safety.

  6. Distributed control system: significantly improved operational response time, reduced from 800ms to 400ms.

  7. CAN bus architecture, centralized push buttons, and electrically proportional handles for higher reliability.

  8. Classic square-section boom design.

  9. Wide-section chassis and H-type spreader, both validated through high-intensity fatigue testing.


  • Engine Model:VOLVO TAD1151VE
  • Rated Power:265kW/2100rpm
  • Max. Torque/Speed:1780Nm/1260rpm
  • Emission Standard:Stage III
  • Transmission Model:DANA 15.5HR36000
  • Drive Axle Model:KESSLER D102 PL341
  • Spread Model:SDJ450H-R1
  • Spread Rotation Angle:+105°/-195°
  • Spread Side Shift:±800mm
  • Spread Compatibility:20
  • Tire Size:18.00-25 40PR
  • Overall Length:11320mm
  • Gross Weight:71t
  • Overall Height:4770mm
  • Max. Lifting Capacity:45t
  • Overall Width:6042-12175mm
  • Stacking Layers:5 (9
  • Wheelbase:6000mm
  • Max. Hoisting Speed:250mm/s, Unladen: 420mm/s
  • Min. Ground Clearance:350mm
  • Max. Lowering Speed:Laden: 300mm/s, Unladen: 360mm/s
  • Front Wheel Track:3033mm
  • Max. Travel Speed:Laden: 21km/h, Unladen: 25km/h
  • Rear Wheel Track:2790mm
  • Gradeability:Laden: 32%, Unladen: 39%
  • Front Wheel Turning Radius:1200mm
  • Max. Hoisting Height:15100mm
  • Rear Wheel Turning Radius:8000mm
  • Boom Tilt Angle:0~60°
